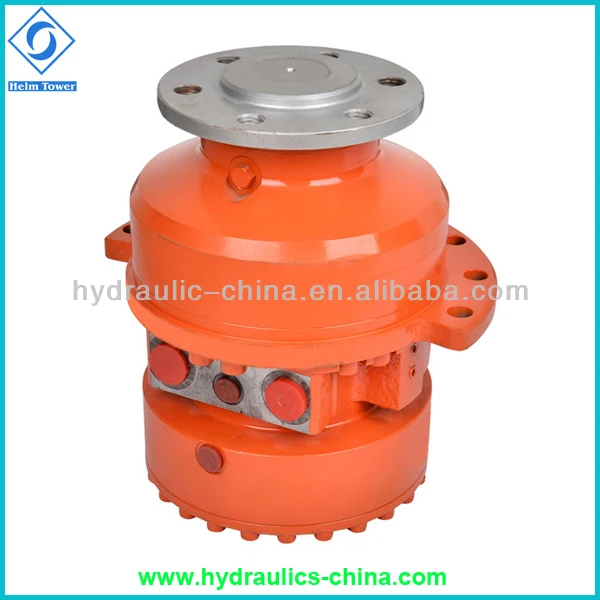

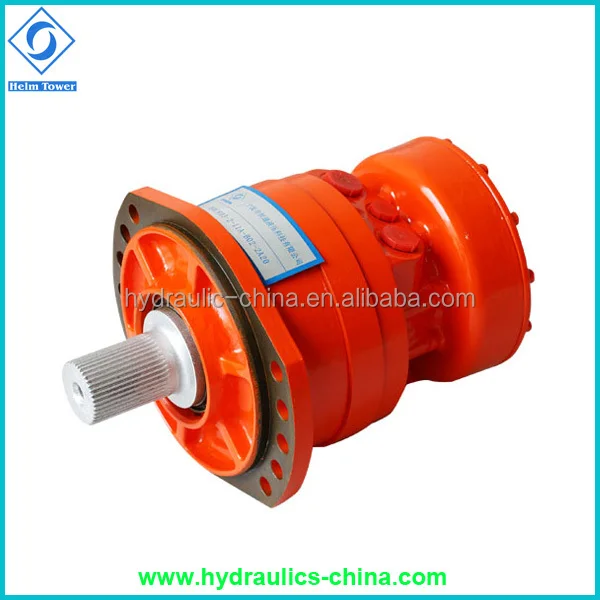

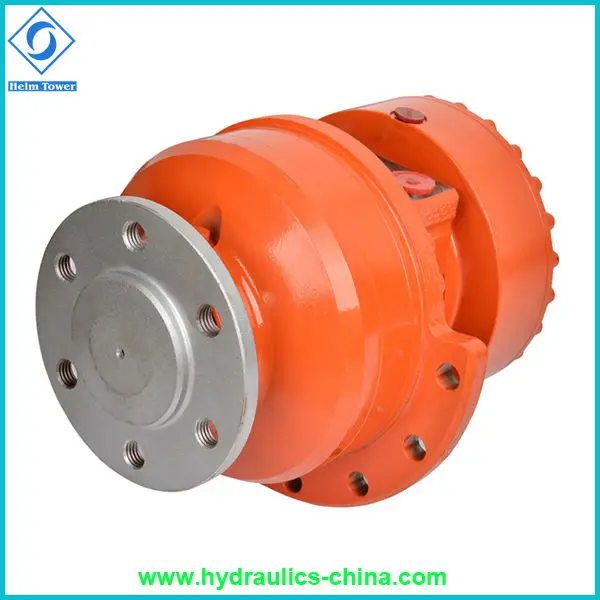

Rexroth MCR MCR3 MCR03 MCRE03 MCR5 MCR05 MCRE05 MCR10 MCRE10 hydraulic motor and parts for skid steer loader

FOB Reference Price:Get Latest Price
US $200-1,500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Hydraulic Motors
Model Number:
Rexroth MCR
Brand Name:
Helm Tower
Place of Origin:
Zhejiang, China (Mainland)
color:
Follow customer's requirement
Supply Ability
Supply Ability:
400 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard packing
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(day) 2 To be negotiated

1. Product Features:



MCR MCR3 MCR03 MCRE03 MCR5 MCR05 MCRE05 MCR10 MCRE10hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.



 Type

MCR03-225

MCR03-255

MCR03-280

MCR03-325

MCR03-365

MCR03-400

Displacement(ml/r)

Full

Semi

Full

Semi

Full

Semi

Full

Semi

Full

Semi

Full

Semi

255

125

255

125

280

140

325

160

365

180

400

200

Max power(kw)

18

12

18

12

18

12

22

14

22

14

22

14

Pressure discrepancy 10MPa Torque

405

202

405

202

445

222

517

258

580

290

636

318

Rated compressor(MPa)

25

Max Torque(N.m)

(Full displacement)

1386

1570

1760

1875

2105

2307

Max pressure(MPa)

40

40

40

40

40

40

Rated speed (r/min)

320

280

260

240

240

240

Speed range(r/min)

10-400

10-360

10-330

10-310

10-280

10-260



 MCR05 hydraulic motor

Designed in control modules, combine freely
High efficiency, High pressure, low speed motors



TypeMCR05-380MCR05-470MCR05-520MCR05-565MCR05-680MCR05-750
Displacement(ml/r)380470520565680750
Continuous output power(kw)292929293535
Differential pressure 10Mpa torque(Nm)60474882789910821194
Rated torque(Nm)141917561942211125402802
Pressure rating(Mpa)252525252525
Max. pressure(Mpa)404040404040
Max. speed(rpm)220220220220220170

Rexroth MCR03/MCRE03/MCR05/MCRE05/MCR10/MCRE10 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine),  Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.



 3. Packaging&Shipping:

Packaging

1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.

2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.

Shipping

urgent & small gross weight by air

big gross weight by sea



4. Company Information:

About US
   Ningbo Helm Tower Noda Hydraulic Co., Ltd is belong to Ningbo wenkui group. which is a professional manufacturer for hydraulic winches, motors, pumps and parts.




Certifications

The spare parts of our motors can completely replace the imported motor parts.

Meanwhile, our motor's performance is close to the imported motors'.

Motors have passed the quality tested by Chinese machinery testing Centre.





FAQ

Q: Are you a manufacturer or trading company?

A: Manufacturer



Q: Your payment?

A: 100% TT in advance  , L/C



Q: Your minmun order quantity(MOQ)?

A: 1 set



Q: Warranty time?

A: 1 year
